51400 Series
Download
Contact Us
Share to
Hot tags: 51400 series bearing,China, manufacturers, suppliers, factory, specifications, dimensions, high quality, buy, price.
>>
<<

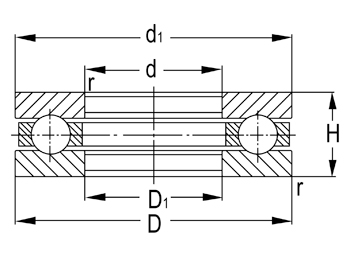

Select | Inquiry | Designation | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limited Speed(rpm) | Weight | ||||
---|---|---|---|---|---|---|---|---|---|---|
d | D | T | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) | |||
51405 | 25 | 60 | 24 | 55.5 | 89.2 | 2200 | 3400 | 0.31 | ||
51406 | 30 | 70 | 28 | 72.5 | 125 | 1900 | 3000 | 0.51 | ||
51407 | 35 | 80 | 32 | 86.8 | 155 | 1700 | 2600 | 0.76 | ||
51408 | 40 | 90 | 36 | 112 | 205 | 1500 | 2200 | 1.06 | ||
51409 | 45 | 100 | 39 | 140 | 262 | 1400 | 2000 | 1.41 | ||
51410 | 50 | 110 | 43 | 160 | 302 | 1300 | 1900 | 1.86 | ||
51411 | 55 | 120 | 48 | 182 | 355 | 1100 | 1700 | 2.51 | ||
51412 | 60 | 130 | 51 | 200 | 395 | 1000 | 1600 | 3.08 | ||
51413 | 65 | 140 | 56 | 215 | 448 | 900 | 1400 | 3.91 | ||
51414 | 70 | 150 | 60 | 255 | 560 | 850 | 1300 | 4.85 | ||
51415 | 75 | 160 | 65 | 268 | 615 | 800 | 1200 | 6.08 | ||
51416 | 80 | 170 | 68 | 292 | 692 | 750 | 1100 | 7.12 | ||
51417 | 85 | 180 | 72 | 318 | 782 | 700 | 1000 | 8.28 | ||
>>
<<
