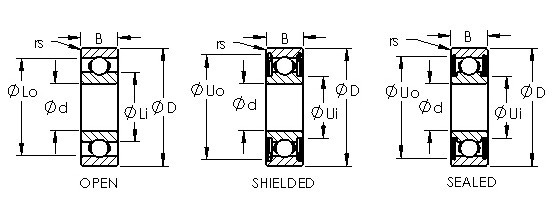

| 选择 | 询价 | 轴承型号 | d | F | B | 基本额定载荷 (N) | 额定转速 (X1000 RPM) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | in | mm | in | mm | Cr | Cor | ||||
| RLS4 | 1/2 | 12.700 | 1-5/16 | 33.338 | 3/8 | 9.525 | 520 | 380 | 20 | ||
| RLS5 | 5/8 | 15.875 | 1-9/16 | 39.688 | 7/16 | 11.112 | 720 | 430 | 17 | ||
| RLS6 | 3/4 | 19.050 | 1-7/8 | 47.625 | 9/16 | 14.288 | 1000 | 630 | 14 | ||
| RLS7 | 7/8 | 22.225 | 2 | 50.800 | 9/16 | 14.288 | 1200 | 760 | 13 | ||
| RLS8 | 1 | 25.400 | 2-1/4 | 57.150 | 5/8 | 15.875 | 1400 | 970 | 11.5 | ||
| RLS9 | 1-1/8 | 28.575 | 2-1/2 | 63.500 | 5/8 | 15.875 | 1530 | 1020 | 10 | ||
| RLS10 | 1-1/4 | 31.750 | 2-3/4 | 69.850 | 11/16 | 17.462 | 1830 | 1230 | 9.2 | ||
| RLS11 | 1-3/8 | 34.925 | 3 | 76.200 | 11/16 | 17.472 | 2010 | 1390 | 8.4 | ||
| RLS12 | 1-1/2 | 38.100 | 3-1/4 | 82.550 | 3/4 | 19.05 | 2400 | 1700 | 7.8 | ||
>>
<<
