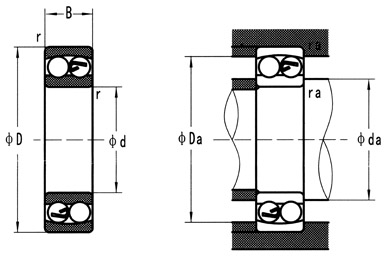

| 选择 | 询价 | 型号 | 内径(d) | 外径(D) | 宽度(B) | 动载 | 静载 |
|---|---|---|---|---|---|---|---|
| (Cr)(N) | (Cor)(N) | ||||||
| 1200 | 10mm | 30mm | 9mm | 3885 | 833 | ||
| 2200 | 10mm | 30mm | 14mm | 5215 | 1113 | ||
| 1300 | 10mm | 35mm | 11mm | 5145 | 1134 | ||
| 2300 | 10mm | 35mm | 17mm | 6440 | 1407 | ||
| 2201 | 12mm | 32mm | 14mm | 5425 | 1211 | ||
| 1201 | 12mm | 32mm | 10mm | 3990 | 889 | ||
| 1301 | 12mm | 37mm | 12mm | 6755 | 1512 | ||
| 2301 | 12mm | 37mm | 17mm | 8470 | 1911 | ||
| 1202 | 15mm | 35mm | 11mm | 5320 | 1225 | ||
| 2202 | 15mm | 35mm | 14mm | 5460 | 1295 | ||
| 1302 | 15mm | 42mm | 13mm | 6790 | 1603 | ||
| 2302 | 15mm | 42mm | 17mm | 8610 | 2037 | ||
| 1203 | 17mm | 40mm | 12mm | 5600 | 1407 | ||
| 2203 | 17mm | 40mm | 16mm | 6965 | 1694 | ||
| 1303 | 17mm | 47mm | 14mm | 8890 | 2240 | ||
| 2303 | 17mm | 47mm | 19mm | 10290 | 2485 | ||
| 1204 | 20mm | 47mm | 14mm | 7000 | 1827 | ||
| 2204 | 20mm | 47mm | 18mm | 8960 | 2310 | ||
| 1304 | 20mm | 52mm | 15mm | 8820 | 2345 | ||
| 2304 | 20mm | 52mm | 21mm | 12950 | 3290 | ||
>>
<<
