SCOM 系列
>>
<<

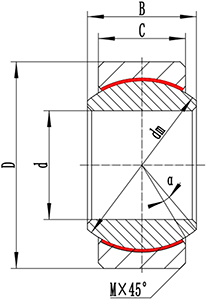

| 选择 | 询价 | 产品编号 | 边界尺寸 mm(inch) | 额定负载(lb) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | C | dm | M | 倾斜角度 α° | 径向静态Cor | 重量 (lb) | |||
| SCOM3 | 3/16 | 9/16 | 0.281 | 0.218 | 0.406 | 0.015 | 11 | 3250 | 0.031 | ||
| SCOM4 | 1/4 | 21/32 | 0.343 | 0.25 | 0.5 | 0.022 | 13.5 | 4950 | 0.049 | ||
| SCOM5 | 5/16 | 3/4 | 0.375 | 0.281 | 0.562 | 0.032 | 12 | 6475 | 0.066 | ||
| SCOM6 | 3/8 | 13/16 | 0.406 | 0.312 | 0.656 | 0.032 | 10 | 8400 | 0.084 | ||
| SCOM7 | 7/16 | 29/32 | 0.437 | 0.343 | 0.687 | 0.032 | 8 | 9453 | 0.104 | ||
| SCOM8 | 1/2 | 1 | 0.5 | 0.39 | 0.781 | 0.032 | 9.5 | 13250 | 0.143 | ||
| SCOM9 | 9/16 | 1 3/32 | 0.562 | 0.437 | 0.875 | 0.032 | 9.5 | 16630 | 0.19 | ||
| SCOM10 | 5/8 | 1 3/16 | 0.625 | 0.5 | 0.968 | 0.032 | 8.5 | 21280 | 0.243 | ||
| SCOM12 | 3/4 | 1 7/16 | 0.75 | 0.593 | 1.187 | 0.044 | 9 | 31920 | 0.45 | ||
| SCOM14 | 7/8 | 1 9/16 | 0.875 | 0.703 | 1.312 | 0.044 | 9.5 | 41960 | 0.58 | ||
| SCOM16 | 1 | 1 3/4 | 1 | 0.797 | 1.5 | 0.044 | 10 | 55200 | 0.851 | ||
>>
<<
