SGE..C 系列
>>
<<
| 选择 | 询价 | 型号 | 尺寸(mm) | 额定载荷(KN) | 重量 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

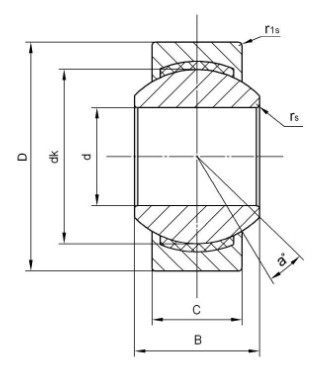

| d | D | B | c | dk | rs | r1s 最小 | 动载荷 | 静载荷 | ≈Kg | |||
| SSGE4C | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 2.1 | 5.4 | 16 | ||
| SSGE5C | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | ||
| SSGE6C | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | ||
| SSGE8C | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 5.8 | 14 | 15 | ||
| SSGE10C | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 8.6 | 21 | 12 | ||
| SSGE12C | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 28 | 10 | ||
| SSGE15C | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 18 | 45 | 8 | ||
| SSGE17C | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 22 | 56 | 10 | ||
| SSGE20C | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 31 | 78 | 9 | ||
| SSGE25C | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 51 | 127 | 7 | ||
| SSGE30C | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 65 | 166 | 6 | ||
>>
<<
