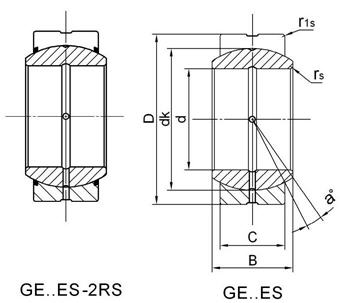

SGE..ES-2RS 系列
>>
<<
| 选择 | 询价 | 型号 | 尺寸(mm) | 额定载荷(KN) | 重量 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | c | dk | rs | r1s 最小 | 动载荷 | 静载荷 | ≈Kg | |||
| SSGE15ES-2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 16 | 84 | 8 | ||
| SSGE17ES-2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 21 | 106 | 10 | ||
| SSGE20ES-2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 30 | 146 | 9 | ||
| SSGE25ES-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 48 | 240 | 7 | ||
| SSGE30ES-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 62 | 310 | 6 | ||
| SSGE35ES-2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 79 | 399 | 6 | ||
| SSGE40ES-2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 99 | 495 | 7 | ||
| SSGE45ES-2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 127 | 637 | 7 | ||
| SSGE50ES-2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 156 | 780 | 6 | ||
| SSGE55ES-2RS | 55 | 85 | 40 | 32 | 74 | 0.6 | 1 | 200 | 1000 | 7 | ||
| SSGE60ES-2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 245 | 1220 | 6 | ||
| SSGE70ES-2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 313 | 1560 | 6 | ||
| SSGE80ES-2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 400 | 2000 | 6 | ||
| SSGE90ES-2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 488 | 2440 | 5 | ||
| SSGE100ES-2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 607 | 3030 | 7 | ||
| SSGE110ES-2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 654 | 3270 | 6 | ||
| SSGE120ES-2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 950 | 4750 | 6 | ||
| SSGE140ES-2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 1070 | 5350 | 7 | ||
| SSGE160ES-2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 1360 | 6800 | 8 | ||
| SSGE180ES-2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 1530 | 7650 | 6 | ||
>>
<<
