WSSB, WSSB-V 系列
>>
<<

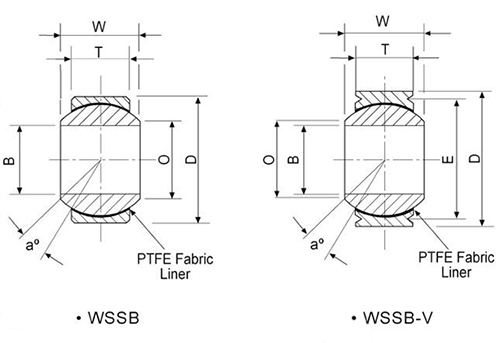

| 选择 | 询价 | 产品编号 (WSSB-V) | 产品编号 (WSSB) | 边界尺寸 mm(inch) | 未对准角度 a° | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| B | D | W | T | E | O REF | 球直径REF | |||||
| (WSSB) | (WSSB-V) | Ball Bore | Outside Diameter | Ball Width | Race Width | "V'Groove Diameter | Ball Flat Diameter | REF | Misalign Angle | ||
| WSSB3 | WSSB-3V | 0.19 | 0.625 | 0.437 | 0.327 | 0.565 | 0.301 | 0.531 | 15 | ||
| WSSB4 | WSSB-4V | 0.25 | 0.625 | 0.437 | 0.327 | 0.565 | 0.301 | 0.531 | 15 | ||
| WSSB5 | WSSB-5V | 0.3125 | 0.6875 | 0.437 | 0.317 | 0.627 | 0.401 | 0.593 | 14 | ||
| WSSB6 | WSSB-6V | 0.375 | 0.8125 | 0.5 | 0.406 | 0.714 | 0.471 | 0.687 | 8 | ||
| WSSB7 | WSSB-7V | 0.4375 | 0.9375 | 0.562 | 0.442 | 0.839 | 0.542 | 0.781 | 10 | ||
| WSSB8 | WSSB-8V | 0.5 | 1 | 0.625 | 0.505 | 0.902 | 0.612 | 0.875 | 9 | ||
| WSSB10 | WSSB-10V | 0.625 | 1.1875 | 0.75 | 0.567 | 1.089 | 0.752 | 1.062 | 12 | ||
| WSSB12 | WSSB-12V | 0.75 | 1.375 | 0.875 | 0.63 | 1.253 | 0.892 | 1.25 | 13 | ||
| WSSB14 | WSSB-14V | 0.875 | 1.625 | 0.875 | 0.755 | 1.503 | 1.061 | 1.375 | 6 | ||
| WSSB16 | WSSB-16V | 1 | 2.125 | 1.375 | 1.005 | 2.003 | 1.275 | 1.875 | 12 | ||
>>
<<
