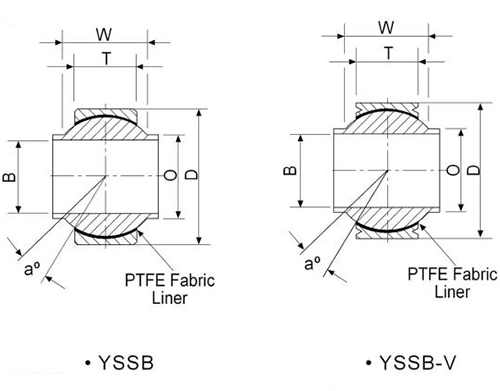

YSSB, YSSB-V 系列
>>
<<
| 选择 | 询价 | 产品编号 (YSSB) | 产品编号 (YSSB-V) | 边界尺寸 mm(inch) | 未对准角度a° | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| B | D | W | T | O REF | 球直径REF | |||||
| YSSB4 | YSSB-4V | 0.25 | 0.74 | 0.593 | 0.255 | 0.39 | 0.593 | 24 | ||
| YSSB5 | YSSB-5V | 0.3125 | 0.6875 | 0.625 | 0.255 | 0.418 | 0.593 | 20 | ||
| YSSB6 | YSSB-6V | 0.375 | 0.906 | 0.813 | 0.345 | 0.512 | 0.781 | 23 | ||
| YSSB7 | YSSB-7V | 0.4375 | 1 | 0.875 | 0.345 | 0.618 | 0.875 | 22 | ||
| YSSB8 | YSSB-8V | 0.5 | 1.125 | 0.937 | 0.401 | 0.73 | 1 | 20 | ||
| YSSB10 | YSSB-10V | 0.625 | 1.375 | 1.2 | 0.567 | 0.856 | 1.25 | 20 | ||
| YSSB12 | YSSB-12V | 0.75 | 1.5625 | 1.28 | 0.62 | 0.97 | 1.375 | 18 | ||
>>
<<
