Ceramic Angular Contact Bearings
Download
Contact Us
Share to
Hot tags: ceramic angular contact bearings,China, manufacturers, suppliers, factory, specifications, dimensions, high quality, buy, price.
>>
<<

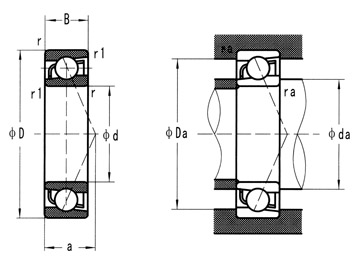

| Select | Inquiry | Bearing Type | Bore Dia(d) | Outer Dia(D) | Width(B) | Dynamic Load Rating | Static Load Rating | Max Speed |
|---|---|---|---|---|---|---|---|---|
| (Cr)(Newtons) | (Cor)(Newtons) | (X1000 RPM) | ||||||
| 7800 - 71800 | 10 mm | 19mm | 5mm | 1260 | 770 | 180 | ||
| 7900 - 71900 | 10 mm | 22mm | 6mm | 2030 | 1260 | 165 | ||
| 7000 | 10 mm | 26mm | 8mm | 2800 | 1680 | 150 | ||
| 7200 | 10 mm | 30mm | 9mm | 4480 | 2660 | 127.5 | ||
| 5200 | 10 mm | 30mm | 14.287mm | 5005 | 2730 | 33 | ||
| 7300 | 10 mm | 35 mm | 11 mm | 7070 | 3465 | 51 | ||
| 7801 - 71801 | 12 mm | 21mm | 5mm | 1400 | 980 | 165 | ||
| 7901 - 71901 | 12 mm | 24mm | 6mm | 2240 | 1540 | 142.5 | ||
| 7001 | 12 mm | 28mm | 8mm | 3500 | 2100 | 135 | ||
| 7201 | 12 mm | 32mm | 10mm | 5040 | 3150 | 120 | ||
| 5201 | 12 mm | 32mm | 15.875mm | 7420 | 4095 | 30 | ||
| 7301 | 12 mm | 37 mm | 12 mm | 7840 | 3675 | 45 | ||
| 7802 - 71802 | 15 mm | 24mm | 5mm | 1540 | 1260 | 135 | ||
| 7902 - 71902 | 15 mm | 28mm | 7mm | 3360 | 2380 | 120 | ||
| 7002 | 15 mm | 32mm | 9mm | 3710 | 2310 | 112.5 | ||
| 7202 | 15 mm | 35mm | 11mm | 6370 | 4060 | 105 | ||
| 5202 | 15 mm | 35mm | 15.875mm | 8190 | 4865 | 25.5 | ||
| 7302 | 15 mm | 42 mm | 13 mm | 9450 | 5040 | 39 | ||
| 7803 - 71803 | 17 mm | 26mm | 5mm | 1610 | 1330 | 120 | ||
| 7903 - 71903 | 17 mm | 30mm | 7mm | 3570 | 2660 | 112.5 | ||
>>
<<
